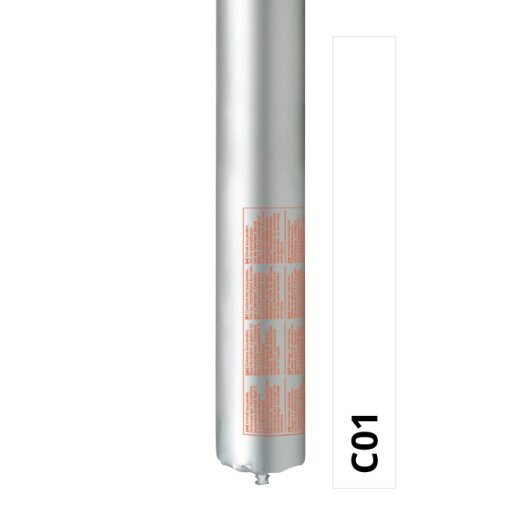

Otto hybrid sealant white C01 glossy "OTTOSEAL® M360" 580ml Aluminum foil bag

SKU: 134-M360-08-C01
Manufacturer part number: M360-08-C01
GTIN: 4030574093852
HAN: M360-08-C01
Category: M360 / M361 - Hybrid sealant for building joints
Manufacturers: Otto Chemie

Silicone "OTTOSEAL® M360"
Type: 1-component structured hybrid polymer STP sealant
Color: weiß
Color code: C01
Appearance: glossy
Container: Aluminum foil bag
Contents: 580 ml
Usage: Sealing of expansion and connections joints on prefabricated concrete and cellular concrete units

7,49 €

incl. 19% VAT , plus

( 6,29 € excl. 19.00% VAT )

Show net prices

Available immediately
Delivery time: ca. 3 weeks (DE - int. shipments may differ)

pcs

Thanks to its quick, shrinkage-free and bubble-free curing and its paintability, silicone-free hybrid sealant OTTOSEAL® M 360 guarantees an optimal result for different building construction and expansion joints indoors and outdoors - for a long time. The sealant is also ideal for closing cracks and holes in façades and interior walls, such as in scaffolding and paintwork. In addition, the sealant is ideal for connections to structures or for connection joints between windows and façades.

C01 - white

Fields of application

Sealing of building construction joints according to DIN 18540-F
Sealing of joints on façades, metal constructions
Sealing of expansion and connections joints on prefabricated concrete and cellular concrete units
For RAL assembly INDOOR and OUTDOOR
For the permanent airtight indoor sealing and for driving-rain-resistant outdoor sealing. Suitable for joints between windows and construction elements
Connection to a structure, e.g. connection to a window frame, doors, gates and drywall to the structure such as wall opening as well as transition areas e.g. from a concrete wall to a wooden stud wall/glass partition and tiled stoves partition.
Closure of cracks and holes in façades and interior walls, such as in scaffolding/paintwork

Characteristics

Good weathering and ageing resistance
Can be painted and varnished – please observe application instruction in Technical Data Sheet
Low odour - No odour nuisance
Silicone-free
Free of isocyanates
Tack-free surface after approx. 6 hours - Less risk of contamination
Temperature resistance from -40 to +90°C

Standards and tests

Tested according to EN 15651 – Part 1: F EXT-INT CC 25 LM / ISO 11600-F-25 LM
Tested fire behaviour in accordance with EN 13501: class E
Component test “Airtightness and driving rain resistance of a sealant system between window and structural part according to ift guideline MO-01”
Accumulation water - Testing according to the guideline "Building waterproofing - Connection to floor-deep windows and doors, Part 2" together with Remmers waterproofing system "Liquid waterproofing with fleece carrier"
EMICODE® EC 1 Plus - very low emission
French VOC-emission class A+
Declaration in "baubook" Austria
According to regulation (EG) no. 1907/2006 (REACH)
Suitable for applications according to IVD instruction sheet no. 7+9+12+19-1+20+22+24+27+29+31+32+35 (IVD = German industry association sealants)

Technical data

Name	Wert
Color	white
Color code	C01
Appearance	glossy
Type	1-component structured hybrid polymer STP sealant
Skin-forming time at 23 °C/50 % RH [minutes]	~ 20 - 30
Curing in 24 hours at 23 °C/50 % RH [mm]	~ 2 - 3
Processing temperature from/to [°C]	+ 5 / + 40
Viscosity at 23 °C	pastös, standfest
Density at 23 °C according to ISO 1183-1 [g/cm³]	~ 1,5
Shore-A-hardness according to ISO 868	~ 25
Permissible movement capability [%]	25
Stress expansion modulus at 100% according to ISO 8339 [N/mm²], method B	~ 0,4
Stress expansion modulus at 100 % according to ISO 37, type3 [N/mm²]	~ 0,6
Tensile expansion according to ISO 37, type 3 [%]	~ 700
Tensile strength according to ISO 37, type 3 [N/mm²]	~ 1,7
Temperature resistance from/to [°C]	- 40 / + 90
Shrinkage of volume according to ISO 10563 [%]	~ 5
Water vapour diffusion resistance μ (ISO 7783)	~ 800
Water vapour diffusion resistance μ (ISO 7783)	~ 8
Shelf life at 23 °C/50 % RH for cartridge/foil bag [months]	12

Item information	Value
Color:
Series:	OTTOSEAL M360
Location:	Inside Outside
Area of application:	Building construction Sealing of joints on facades Expansion joints
Look:	glossy
container:	Aluminum foil bag
Amount of content:	580 ml
Manufacturers:	Otto Chemie
Manufacturer part number:	M360-08-C01
GTIN:	4030574093852
Shipping weight:	0,03 kg
Item weight:	0,86 kg
Content:	580,00 ml
