Schmalz 145x145x132mm VCBL-N Nesting vacuum block with sensing valve

SKU: 107-10011205563
Manufacturer part number: 10.01.12.05563
HAN: 10.01.12.05563
Category: Nesting vacuum block "VCBL-N"
Manufacturers: Schmalz - Vakuumtechnik

Suction cup VCBL-N
Vacuumsystem: Sacrificial platesSize: 145x145x132 mm
Height: 132 mm
with sensing valve
Suitable for: All common nesting machines with sacrificial plates

440,47 €

incl. 19% VAT ,

( 370,14 € excl. 19.00% VAT )

Old price: 473,62 €

Show net prices

Available immediately
Delivery time: 2 - 4 Workdays (DE - int. shipments may differ)

pcs

Description
Reviews

Nesting vacuum block VCBL-N 145x145x132 30/40 TV

With the VCBL-N vacuum block, you can clamp workpieces of all kinds, from rough or textured surfaces to solid wood. With the extensive portfolio of dimensions and clamping heights, you can solve any clamping task. The suction plate can be changed quickly and without tools and is also equipped with a membrane. This protects the workpiece from direct contact with the standard touch valve and at the same time from soiling. The optional lifting system facilitates the loading and unloading of large, bulky workpieces and at the same time protects the sealing edge of the suction plate. The additional hose connection, which is included in delivery, enables a direct increase in performance for particularly demanding applications. The nesting insert, which is also included in delivery, can be removed so that the vacuum block can also be used on the grid table. This makes the VCBL-N a 2-in-1 all-rounder. Tedious switching of the vacuum block between grid and nesting applications is now a thing of the past.

Application

Vacuum clamping system for CNC machining centers with nesting and grid table
Suitable for simple 3-axis machining and complex 5-axis machining thanks to a wide range of working heights from 32 to 132 mm
Specially developed for use on grid tables by removing the nesting insert
Suitable for all common grid geometries (grid dimensions 30 and 40 mm, groove widths 6 to 7.5 mm, groove depths 6 to 7 mm)

Product-Highlights

Broad product range and 2-in-1 function enable maximum flexibility and therefore short set-up times
Use of one block suction cup series thanks to the 2-in-1 function for grid and nesting tables
Maximum stability even in demanding applications such as solid wood thanks to solid, one-piece design and additional vacuum connection
Simple, tool-free repair by using the proven suction plate system
Gentle loading and unloading of bulky large parts thanks to optional lifting system

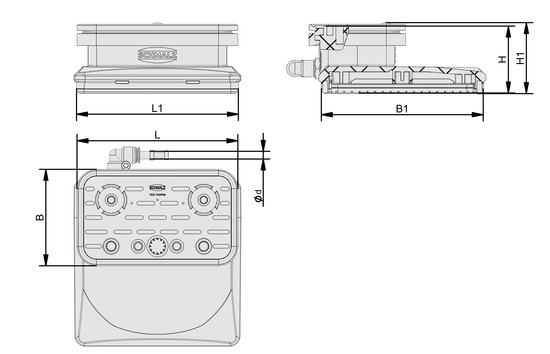

Technical data (10.01.12.05563)

Name	Wert
Size	145x145x132 mm
B1	130 mm
H	132 mm
H1	135,15 mm
L1	130 mm
Genauigkeit	± 0,06 mm
Equipment	with sensing valve
Suitable for	All common nesting machines with sacrificial plates

Highlights

Right on the sacrificial plate

Significant productivity increase through the reduction to a single work step.

High quality Tungsten carbide

Suitable for all common grid geometries (grid dimensions 30 and 40 mm, groove widths 6 to 7.5 mm, groove depths 6 to 7 mm).

Suction-Plate replaceable

Easy-to-change suction plates for cost-efficient work.

Item information	Value
Height (mm):	132
Length (mm):	145
Width (mm):	145
Size:	145x145x132 mm
Type:	Blocksauger
suitable for brand:	Homag Weeke Holz-Her Felder IMA Masterwood SCM Morbidelli Anderson Biesse
Material plates:	Rubber
Kind of console:	Opferplatte
Cup material:	Plastic
Series:	VCBL-N
Manufacturers:	Schmalz - Vakuumtechnik
Manufacturer part number:	10.01.12.05563
