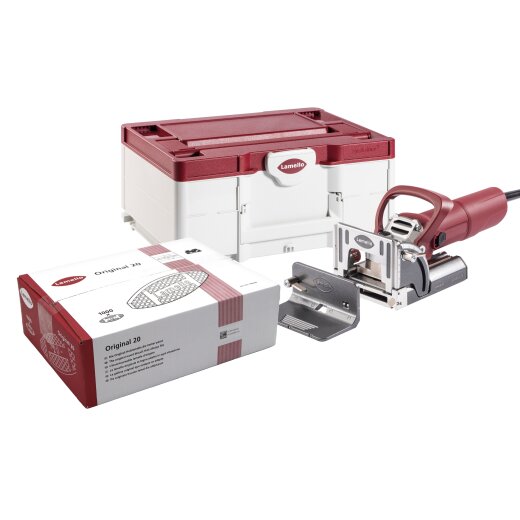

Lamello Classic X biscuit joiner in Systainer 101602DEK + wooden biscuit Size 20

SKU: 110-101602DES-P
Manufacturer part number: 101602DES-P
GTIN: 7640348848785_P
HAN: 101602DES-P
Category: Lamello slat grooving machine Classic X
Manufacturers: Lamello - Verbindungstechnik

Lamello Classic X biscuit joiner

scope of delivery:

Classic X
Carbide tipped cutter
Suction stub 36 mm
Stop square
Spacer 4 mm
Tool set
Systainer³ M Box
Original wooden biscuit Size 20 (144020)

612,85 €

incl. 19% VAT ,

( 515,00 € excl. 19.00% VAT )

Show net prices

No sale of Lamello products to resellers!

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

pcs

Lamello Classic X Nutfräsmaschine im Karton

Classic X is the original biscuit joiner from the inventor of the Lamello System for cutting the 4 mm groove. The proven and well-designed Classic X is fast and versatile in its use and the basis for the wide range of connectors with fixed, self-clamping and detachable solutions. Precision in every component leads to perfect accuracy of the workpieces and saves time. The multifunctional stop square allows perfect mitres by applying on the exterior surface and stabilises the machine in vertical position.

The base plate, swivel stop and front angle are now flush on both sides for efficient positioning on the workpiece
Precisely machined guide and stop surfaces for a perfect fit of the workpieces
Slim, powerfull 850W electric motor
Multifunctional try square for vertical stability as well as for perfect mitres by stopping on the outer surface for 22.5 and 45°. angle

Features of the Lamello system

Versatile applications: One cutting principle for many different joining elements
Lateral tolerance: The generous sliding tolerance allows for perfect flush alignment of workpieces
Perfect fit: The precision of the joining elements and of the 4 mm groove lead to a perfect fit
Versatile: The minimal element depth allows for mitres of 22.5 – 180 degrees as well as surface and corner joints and divisions
Symmetrical: The identical groove in both workpieces leads to an increase in efficiency in production

Applications

Furniture manufacturing
Interior fitting
Kitchen manufacturing
Commercial joinery

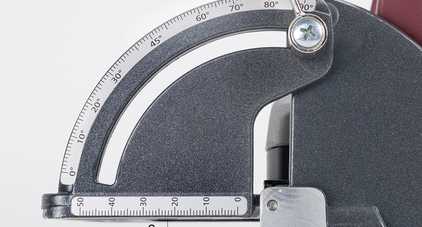

Multifunctional stop square

In addition to vertical stability resulting from the larger contact area, the stop quare enables variable adjustment of the groove position, 0-50 mm.

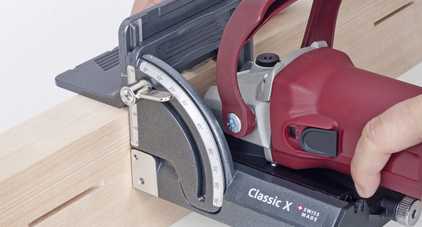

Swivelling front stop with fixed pivot point

Join reliably with the cutter which is in the exact center between to two application surfaces

Versatile

A cutting principle for many different joining elements.

Scope of delivery

Classic X
Carbide tipped cutter
Suction stub 36 mm
Stop square
Spacer 4 mm
Tool set
Systainer³ M Box
Original wooden biscuit Size 20 (144020)

Technische Daten:

Voltage (V)	230 V
Power (W)	850 W
Speed (U/min)	10.000 U(min)
Teeth	Z6 (3+3) reversing teeth
Cutting depth max	20 mm
Weight (kg)	2,9 kg
Herstellernummer	101602K

Item information	Value
Product type:	Elektrowerkzeuge
Manufacturer:	Lamello AG
Product family:	Elektromaschine
Product:	Classic X
Manufacturers:	Lamello - Verbindungstechnik
Manufacturer part number:	101602DES-P
GTIN:	7640348848785_P
