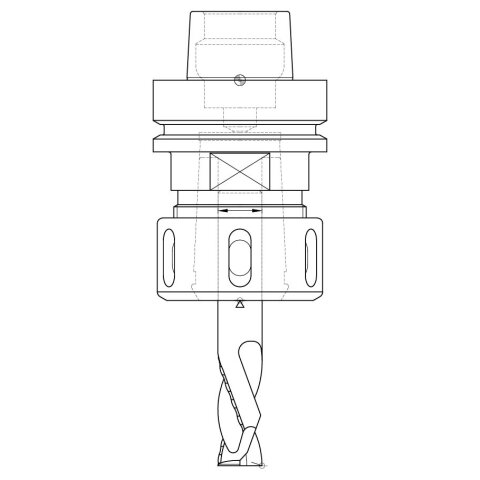

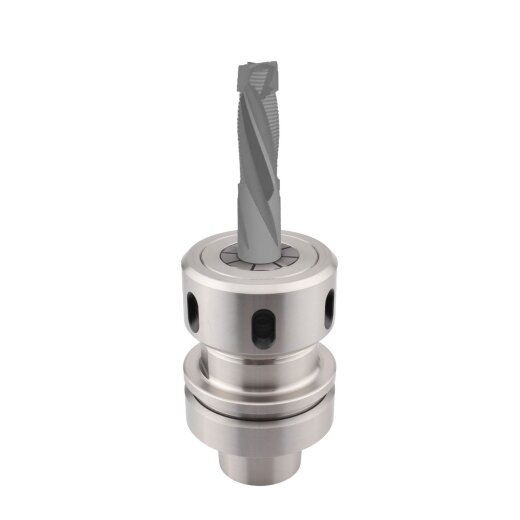

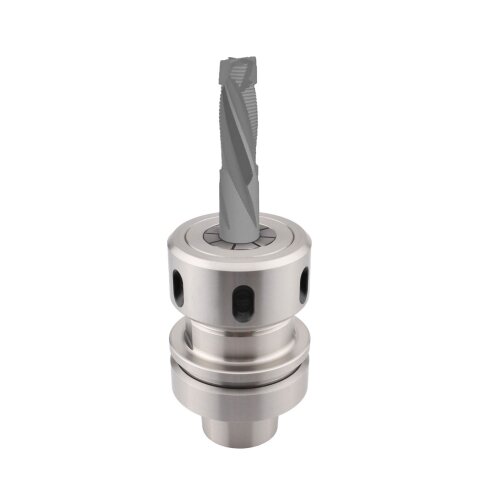

Aigner 16mm solid carbide roughing/finishing cutter "C272" Z2+2 16x40/100mm S16 right up&downcut HSK-F 63 collet chuck

SKU: 121-9988-01427
Manufacturer part number: C272-160402R-M2
HAN: C272-160402R-M2
Category: Solid carbide roughing/finishing cutter
Manufacturers: Aigner - Werkzeuge für die Holzbearbeitung

Roughing/finishing cutter "C272" Up & Downcut
Diameter: 16mm
Usable length: 40mm
Twist change: 12mm
Total length: 100mm
Shank: 16mm
Twist: Up & Downcut
Direction of rotation: Right hand rotation
Cutting material: Solid carbide (TC)
Machine interface: HSK-F 63 collet chuck

Standzeit 9/10

Schnittqualität 8/10

HSK-F 63 chuck

434,11 €

incl. 19% VAT ,

( 364,80 € excl. 19.00% VAT )

Old price: 456,96 €

Show net prices

Available immediately
Delivery time: ca. 4 weeks (DE - int. shipments may differ)

pcs

High-performance solid carbide Roughing/finishing end mills for wood and plastic Up & Downcut

Our innovative "C272" solid carbide end mills, featuring an alternating helix and a combined roughing and finishing profile, deliver a perfect balance of performance and precision. The unique cutting geometry significantly reduces cutting forces, enabling higher feed rates and longer tool life. The result: a superior surface finish with tear-free edges on the surface layers. Ideal for demanding machining applications in wood and plastic.

Your advantages

Tear-resistant edges at the top and bottom surface layers.
Lower cutting pressure cause of serrated edges
Higher feed speed
Longer service life
Versatile
high cutting performance

Areas of application

Furniture
Interior construction
Model making
Prototype construction
Industry

Technical data (C272-160402R-M2)

Name	Value
Diameter (D)	16mm
Usable length (NL)	40mm
Twist change (Lu)	12mm
Thickness of workpiece (HD)	35mm
Total length (GL)	100mm
Shank (S)	16mm
Direction of rotation	Right hand rotation
Twist	Up & Downcut
Cutting material	Solide carbide (TC)
Material body	Solide carbide (TC)
Machine interface	HSK-F 63 collet chuck

Highlights

Roughing and finishing profile

Significant productivity increase through the reduction to a single work step.

High quality Tungsten carbide

Long service life and smooth running thanks to the use of high-quality solid carbide (tungsten carbide).

Up & Downcut

Tear-resistant edges at the top and bottom surface layers.

Item information	Value
Diameter:	16mm
Direction of rotation:	right
Number of teeth:	2
Twist:	middle
Shank diameter:	16mm
Overall length:	100mm
Machine interface:	HSK-F 63
Usable length:	40mm
Cutting material:	VHW
WKZ:	F
Kind of Tool:	Fräser
Operating mode:	MEC
Kind of tool:	Roughing and finishing end mills
Drill cutting knive:	Ja
Base body material:	Carbide
Series:	C272
Manufacturers:	Aigner - Werkzeuge für die Holzbearbeitung
Manufacturer part number:	C272-160402R-M2

Abbildung kann vom Original abweichen.

Parameter

Drehrichtung:	rechts
Schneidstoff:	VHW
Zähnezahl:	2
Betriebsart:	MEC
Durchmesser:	16 mm
Nutzlänge:	40 mm
Gesamtlänge:	100 mm
Schaftdurchmesser:	16 mm
Drall:	Mitte
Einbohrschneide:	Ja
nMax:	24.000 U/min
Grundkörper:	Voll-Hartmetall
Serie:	C272
Maschinenschnittstelle:	HSK-F 63
